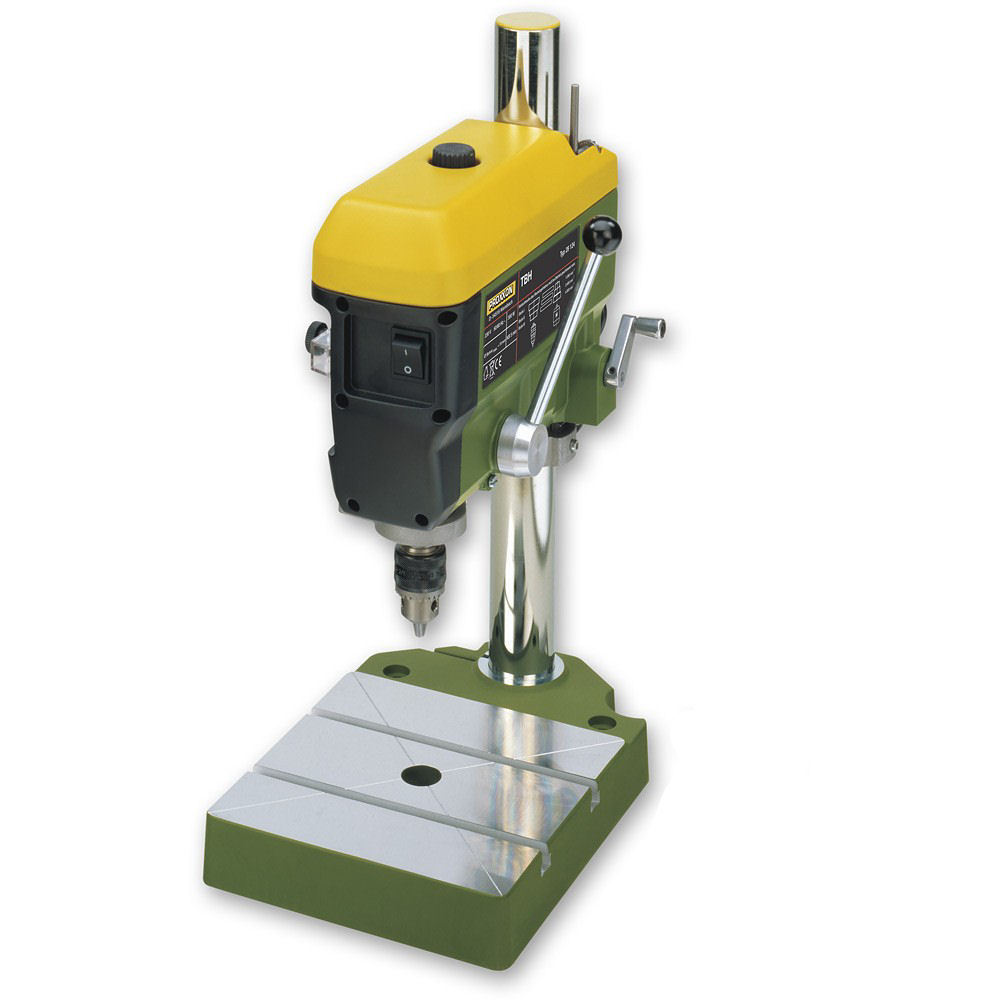

PROXXON TBH Bench Drill
Practical height adjustment via toothed rack with easy to operate crank.
NO 28 124
Key Features
- Height adjustment easily altered with headstock lock lever
- Table features ribbed base and milled work area with T-slots
- Permanent magnet motor
- Max drill bit size 10mm
- Three speeds 1,080, 2,400 & 4,500rpm
Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range. Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2″ thread for the corresponding chuck (industrial quality). Spindle with additional fit for steel collets NO 28 200. Ideal for jig boring with the compound table KT 150
Technical data:
230 Volt. Spindle rotational speeds 1,080 – 2,400 and 4,500rpm. Sliding sleeve stroke 63mm. Height adjustment via crank 70mm. Throat 140mm. Usable table surface 200 x 200mm. Column 45 x 500mm. Tool holder up to 10mm. Drilling performance in steel 10mm. Weight approx. 10kg.
Note:
Table and arm of the table drilling machine offered here are made of die-cast aluminium. A refined, rust-proof and statically very solid material. Fittings and feeds are machined on our highly modern CNC controlled machines (milled, line-bored, lathed, etc.).
