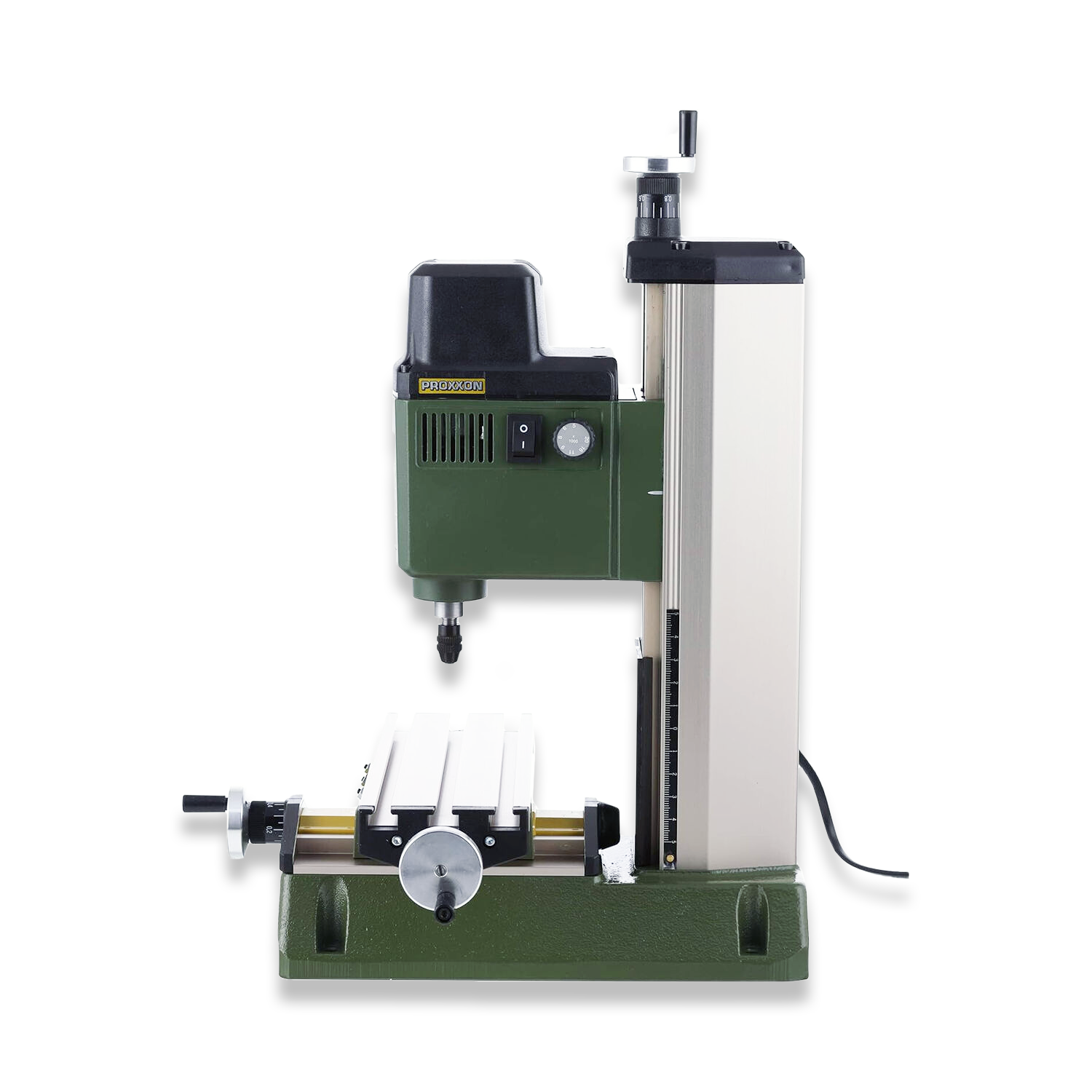

MICRO Milling machine MF 70

NO 27 110

The accurate milling machine for delicate projects. Spindle speeds 5,000 – 20,000rpm. For work with extremely small cutters.

Key Features

Stable grey-cast iron machine base, vertical guide and compound table. Free from play, re-adjustable dovetail gib in all axes. Die-cast aluminium arm housing, with 24-pin special motor (balanced). For vibration-free work at high speeds.

The triple slit, hardened steel MICROMOT collets cover 1 – 1.5 – 2 – 2.35 – 3 – 3.2mm. The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm. An adjustable ruler scale eases the positioning of the workpiece.

Technical data:
230V, 100W, 50/60Hz. Spindle speeds 5,000 – 20,000rpm. Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm. Footprint size 130 x 225mm and overall height 370mm. Weight approx. 7kg. The clamping blocks depicted are included too, but not the workpiece!

Note:
MICRO Milling machine MF 70 is also available as CNC-ready version NO 27 112
