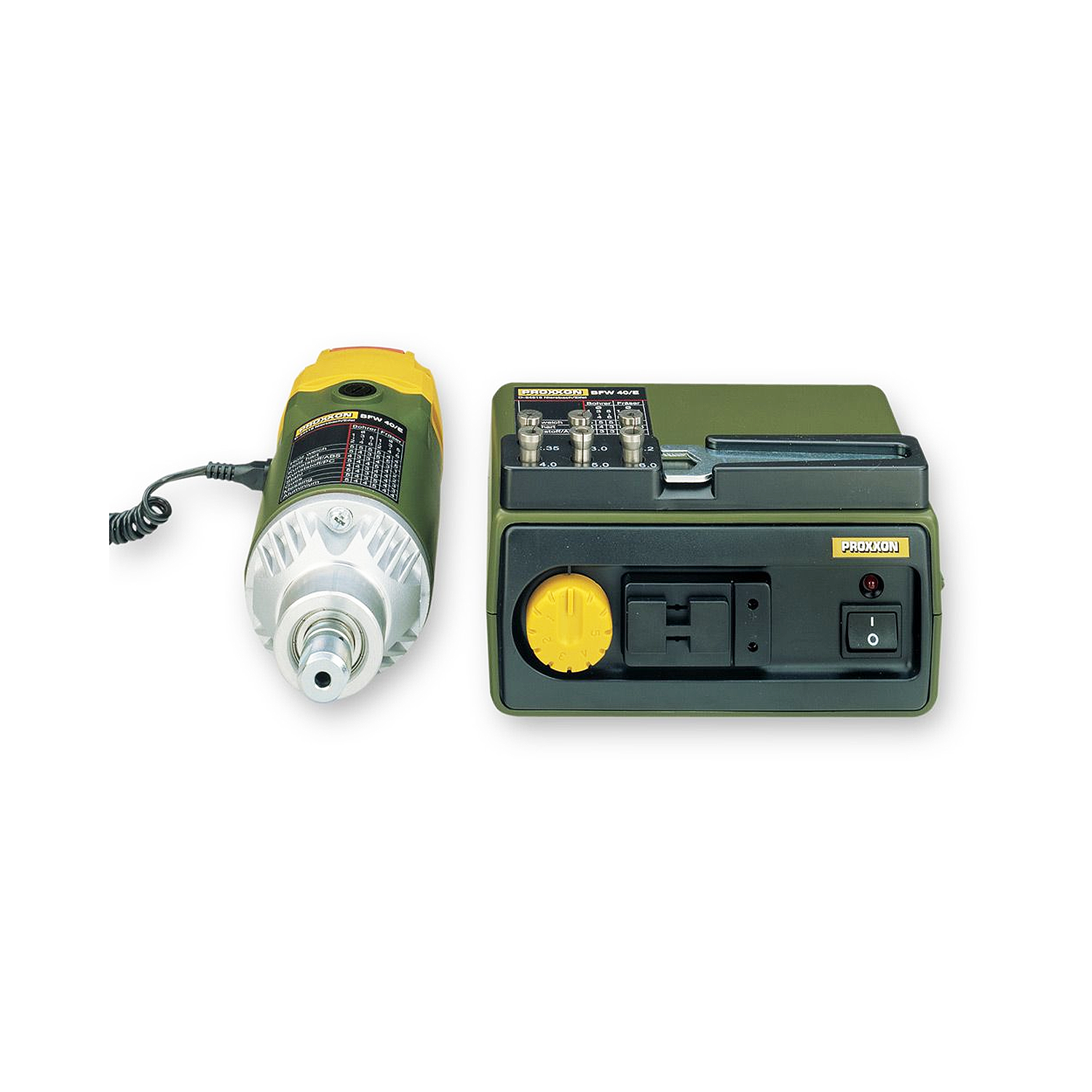

PROXXON Mill/Drill System BFW 40/E 20165

Name: PROXXON Mill/Drill System BFW 40/E 20165
Brand: PROXXON
SKU: 20165
Price: 189.27 GBP
Availability: InStock

£189.27 (exc VAT) - £227.12 (inc VAT)

SKU: 20165 Categories: Proxxon Machines, Proxxon milling cutters / Milling Machines Brand: PROXXON

PROXXON Mill | Drill system BFW 40/E

NO 20 165

The triple ball bearing armature provides direct drive (no gearing).

Key Features

Variable speed 900rpm to 6,000rpm
Triple ball bearing armature provides virtually vibration-free operation
Aluminium die-cast head
Large, easy to use switch
Complete with collets covering 2.35, 3.0, 3.2, 4.0, 5.0 & 6.0mm

Die-cast aluminium head with spindle neck of 43mm (European standard). Large, easy to use switch with emergency function. Chart indicates optimum speeds for milling and drilling of various materials.

The motor operates at 40V, supplied from the power pack/ controller. At this level, the control characteristics are ideal and yield high torque, even at lower speeds. (The compound table, drill stand and step clamps are not included.)

Other technical data:
Control unit with full wave electronics for 230V, 40VDC secondary voltage. Power consumption up to max. 250W. Spindle speed infinitely variable between 900 and 6,000rpm. Complete with triple slit, hardened collets covering 2.35 – 3 – 3.2 – 4 – 5 and 6mm as well as one locking pin and one spanner.
