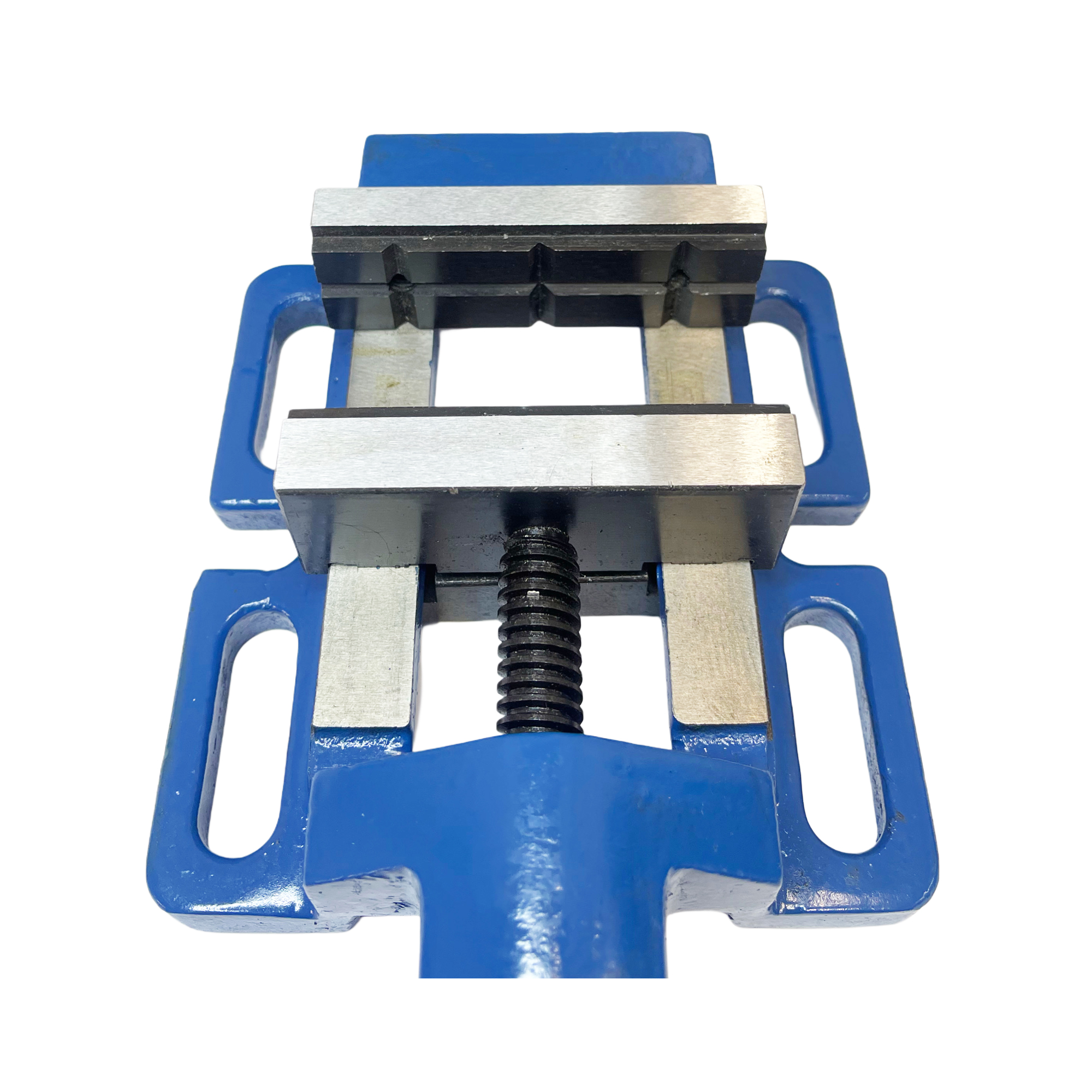

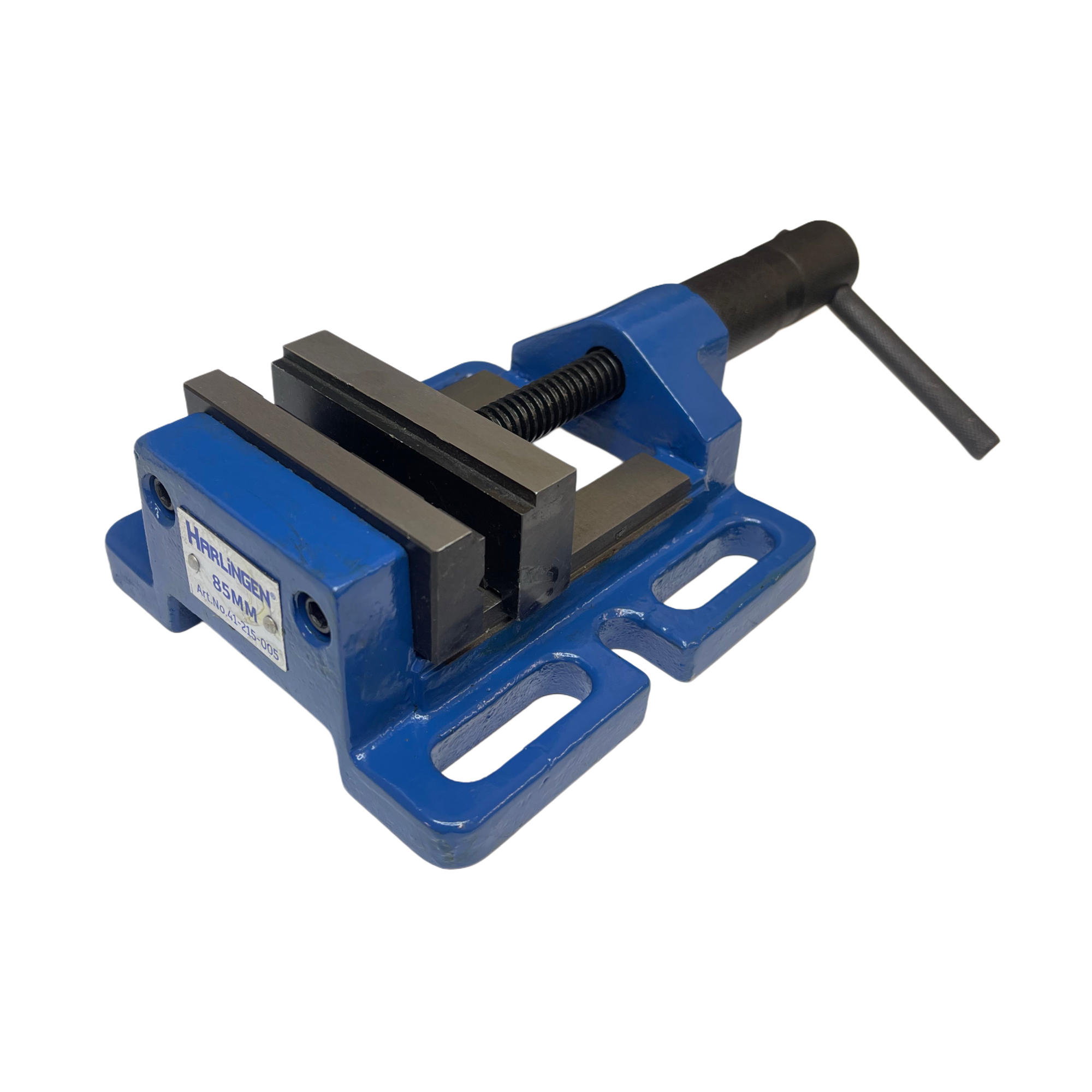

85MM DRILL PRESS VICE BUILT IN TYPE DRILLING TAPPING HARLINGEN

BUILT IN TYPE DRILL PRESS VICE HAS CONSISTENT OVERALL LENGTH WHICH IS DESIGNED FOR A VARIETY OF USING FUNCTIONS LIKE DRILLING, TAPPING AND REAMING
SHOULDER SLOTS FOR QUICK EASY POSITIONING ON DRILL PRESS TABLE
JAW WIDTH 85MM
OPENING CAPACITY 65MM
VICE HEIGHT 57MM
BASE DIMENSIONS 138MM WIDE X 145MM LONG (NOT INCLUDING HANDLE)
DISTANCE BETWEEN CLAMPING CENTRES 105MM
SLOT SIZE 11MM
STATIC JAW HAS BOTH HORIZONTAL AND VERTICAL VEE GROOVES
WEIGHT 3KG

5056685111482
