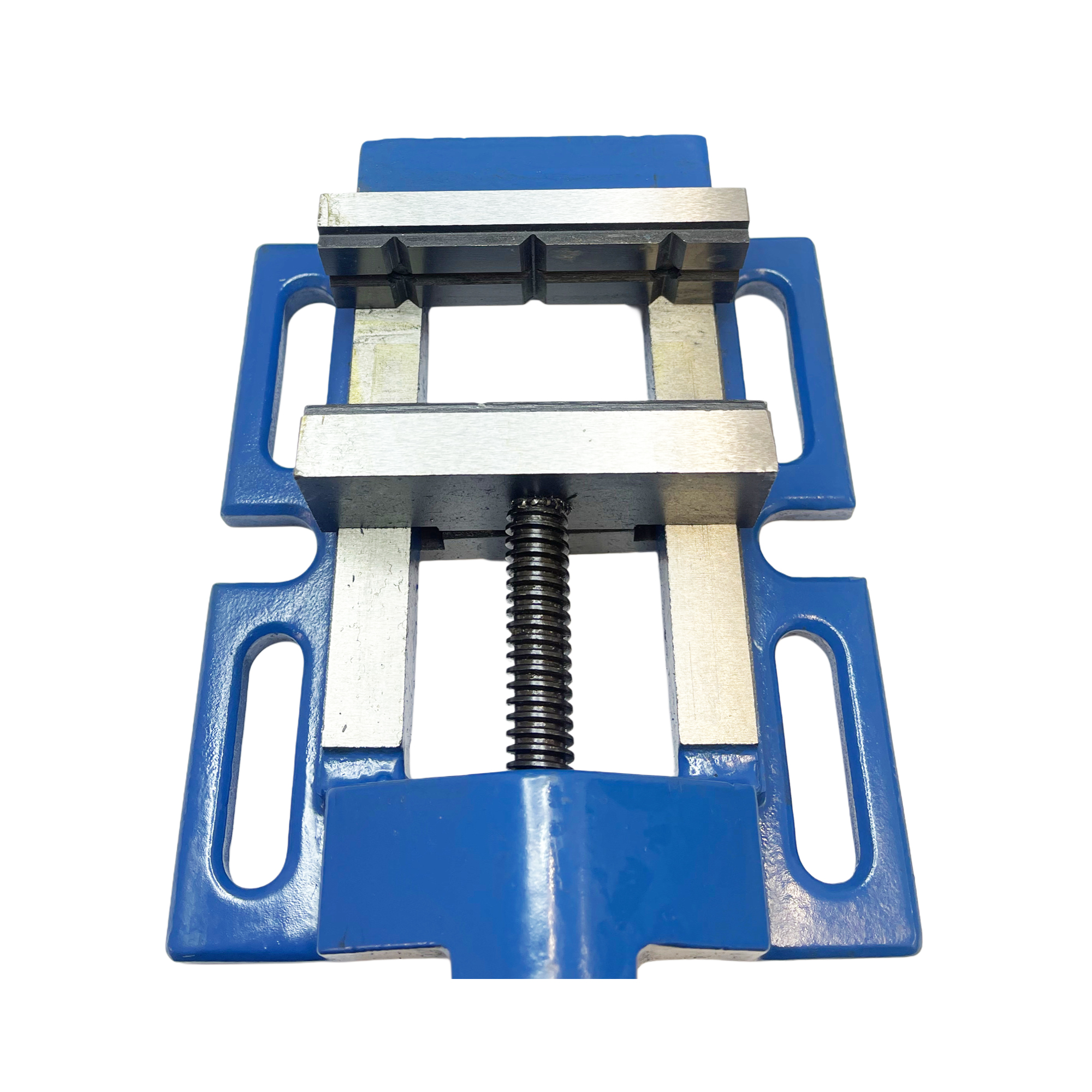

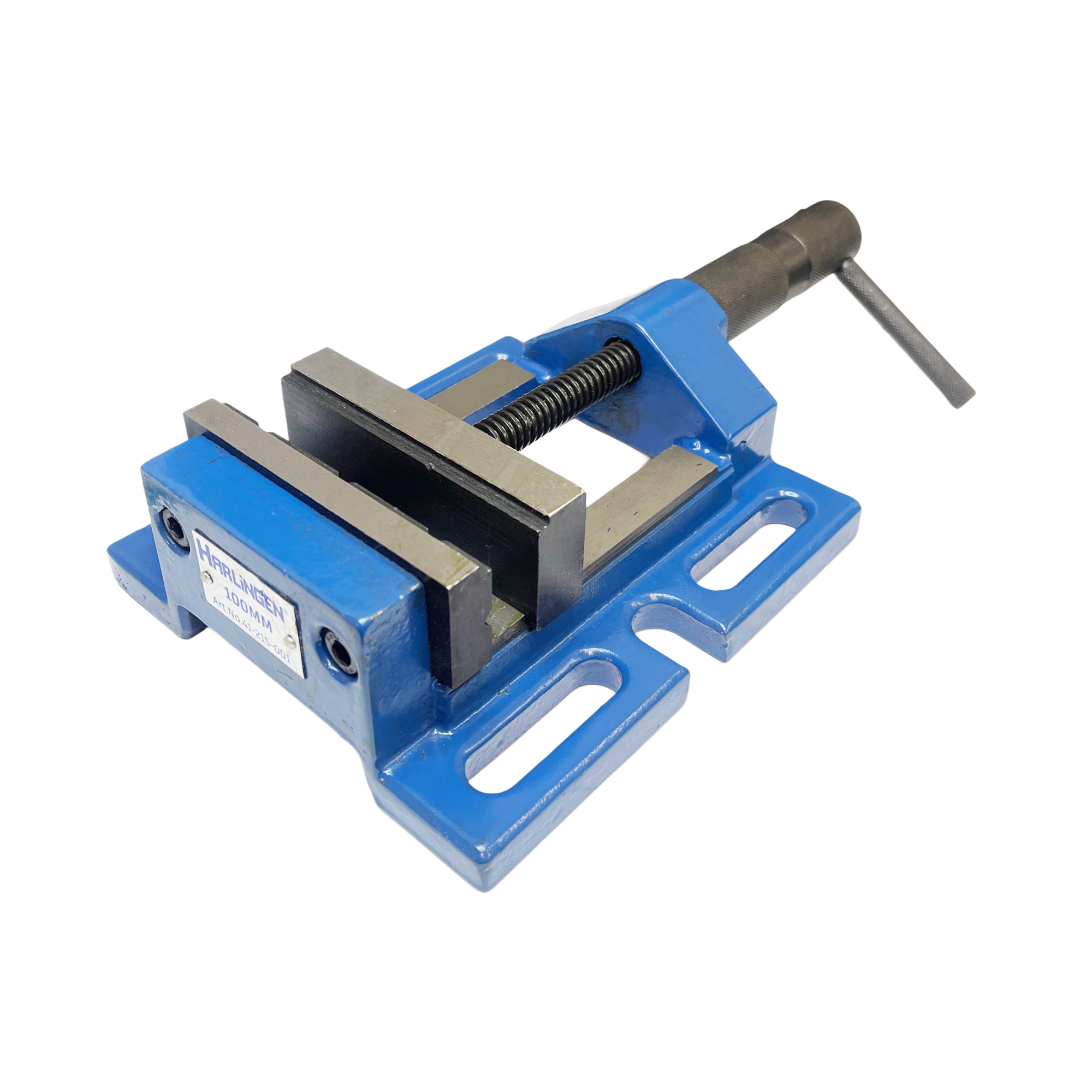

100MM DRILL PRESS VICE PROFESSIONAL BUILT IN TYPE DRILLING TAPPING HARLINGEN

BUILT IN TYPE DRILL PRESS VICE HAS CONSISTENT OVERALL LENGTH WHICH IS DESIGNED FOR A VARIETY OF USING FUNCTIONS LIKE DRILLING, TAPPING AND REAMING
SHOULDER SLOTS FOR QUICK EASY POSITIONING ON DRILL PRESS TABLE
JAW WIDTH 100MM
OPENING CAPACITY 90MM
VICE HEIGHT 66MM
BASE DIMENSIONS 157MM WIDE X 178MM LONG (NOT INCLUDING HANDLE)
DISTANCE BETWEEN CLAMPING CENTRES 124MM
SLOT SIZE 12MM
STATIC JAW HAS BOTH HORIZONTAL AND VERTICAL VEE GROOVES
WEIGHT 4.3KG

5056685111499
