Kreg R3 Pocket Hole Jig R3-INT Pocket Hole System + KHC6 152mm Wood Project Clamp With Automaxx

Kreg Jig® R3

Features
Great for portable use and for repairs
Works with materials from 1/2″ to 1 1/2″ thick in 1/8″ increments
7/8″ center-to-center drill guide spacing
Construction
Glass-filled nylon, polymer, steel

Adjustability
Adjustable material-thickness sliders

Capacity
Materials from 1/2″ to 1 1/2″ thick (12-38mm)

Compatibility
Kreg Pocket-Hole Screws
Kreg Pocket-Hole Plugs
Easy-Set Drill Bit
Includes
(1) Pocket-Hole Jig R3
(1) stepped drill bit
(1) 6″ square-drive bit
(1) depth collar
(1) clamp adapter pad
(1) allen wrench
(1) screw and plug sample pack
(1) carrying case
Owner’s Manual
The Home Improver’s Solution for Building with Wood
With the Kreg Pocket-Hole Jig R3, you can build bookcases, shelves, and storage projects for your home. It’s also great for creating custom built-ins, and countless other home improvement projects. Plus, the R3 can be used portably to make lasting repairs around your home.

Clamp Pad Adapter
The Pocket-Hole Jig R3 includes a Clamp Pad Adapter, which allows the R3 to be easily secured to your workpiece using any standard bar clamp, C-clamp, or Kreg Face Clamp. For faster and more repeatable pocket holes, choose a Kreg Face Clamp.

Material Thickness Setting
From thin drawer boxes and craft projects to stout 2x4s, this Pocket-Hole Jig R3 can handle just about anything. Independent positioning sliders feature nine depth settings, allowing you to easily join materials from 1/2″ to 1 1/2″ thick in 1/8″ increments.

Organized Carrying Case
A compact yet durable carrying case is included so that you’ll always have a safe place to store your R3 and organize all of the accessories it comes with. As a bonus, a depth-collar gauge has been molded into the case for handy reference.

Dual Positioning Sliders
Dual positioning sliders help you properly set your jig based on the thickness of the material you are working with. Simply depress the button on the side of the jig and move the sliders so your material thickness is aligned with the arrow on the jig body. It’s that easy!

Glass-Reinforced Nylon Body
The blue body of every Kreg Pocket-Hole Jig is made from a heavy-duty, glass-reinforced nylon. This composite material offers the resiliency and flexibility you need without sacrificing the strength and durability Kreg customers have come to expect.

Superior Angle
Unlike competing jigs with a shallower angle of approach, the Kreg Pocket-Hole Jig R3 features an optimized drilling angle specifically designed to increase driving efficiency and minimize the overall size of the pocket hole. The result is a compact pocket hole, less than 1 1/2″ in size.

Wood-Chip Relief
Sometimes the simplest things are the easiest to overlook. The R3 includes one wood-chip relief hole for every drill guide hole, designed to keep the drill bit clear of excess wood chips, minimizing drill-torque, increasing the longevity of your drill bits, and allowing you to complete a perfect pocket hole in just one plunge.

Hardened-Steel Core
Kreg drill guides are subject to direct contact with the drill bit every time a pocket hole is created. The core of every Pocket-Hole Jig R3 features hardened-steel, which carries a lifetime guarantee. The R3’s core shrouds the bit and supports the workpiece through 100% of the drill-stroke. The end result is minimal bit deflection, reduced tear-out, and a clean, pluggable pocket hole fit for finish work.

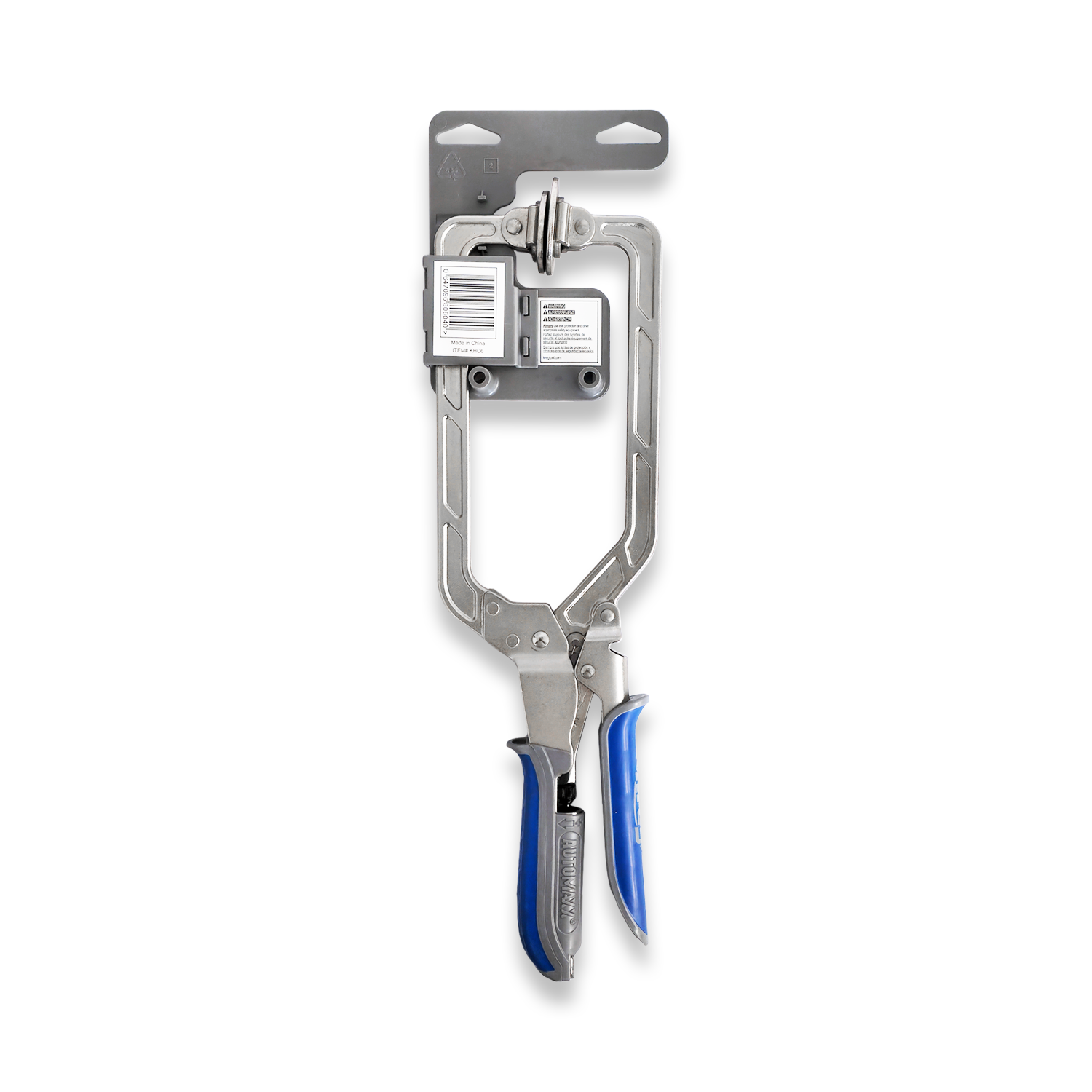

Wood Project Clamp – 6″
6″ (152mm) reach; clamps materials up to 5″ thick (127mm)
Adjusts automatically to match material thickness
Easy-to-regulate pressure with a simple thumbscrew
Large clamp faces spread pressure evenly
Ergonomic padded grips prevent hand fatigue
Works with the Kreg Pocket-Hole Jig R3 Clamp Pad Adapter, as well as the Portable Base
