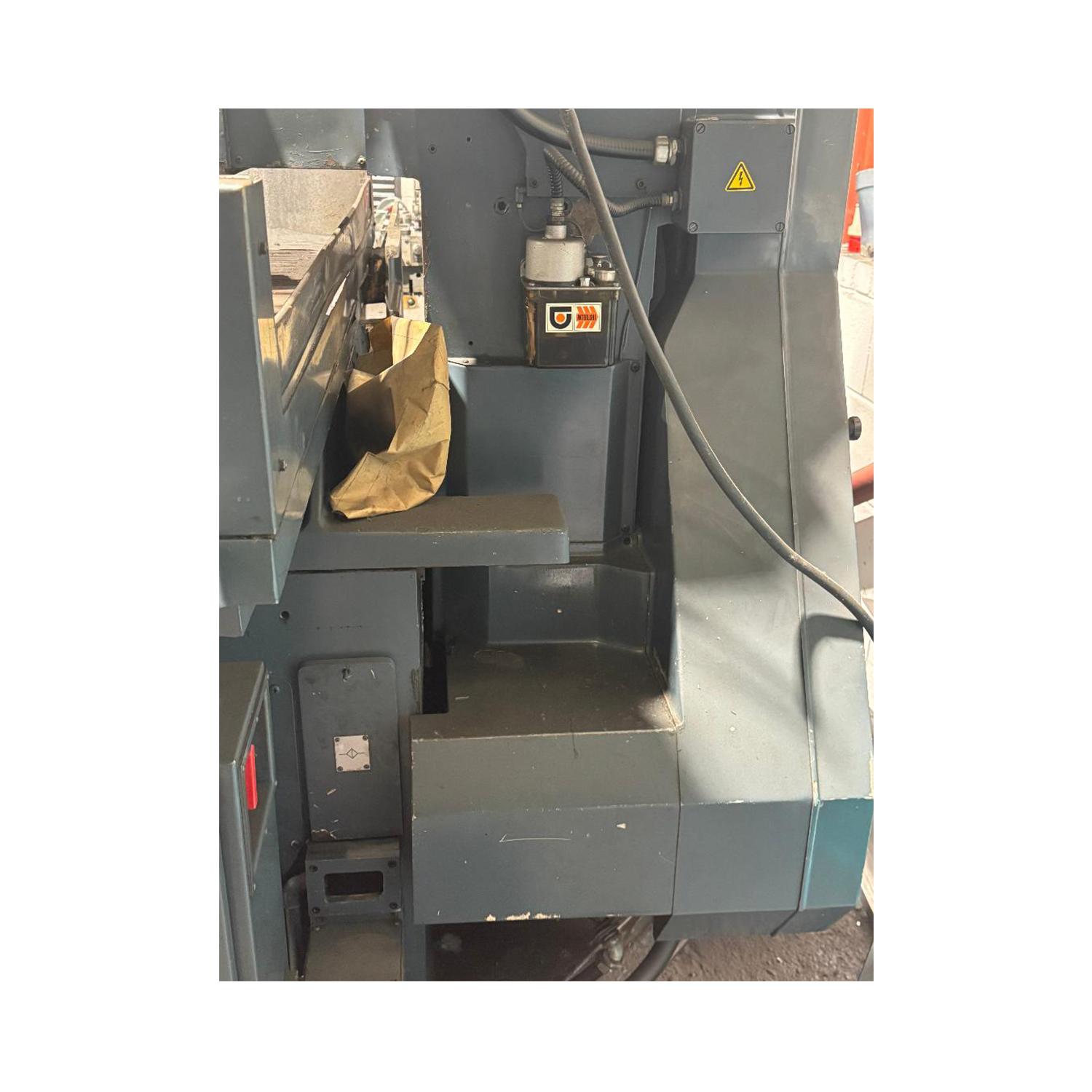

Jones & Shipman Model 1415 Surface Grinder 12" x 24" Eclipse Magnetic Table - Image 10

Jones & Shipman Model 1415 Surface Grinder 12" x 24" Eclipse Magnetic Table - Image 11

Jones & Shipman Model 1415 Surface Grinder 12" x 24" Eclipse Magnetic Table - Image 12

Jones & Shipman Model 1415 Surface Grinder 12″ x 24″ Eclipse Magnetic Table

£10,000.00 (exc VAT) - £12,000.00 (inc VAT)

1 in stock

SKU: GRINDER1 Categories: *Clearance / end of line stock*, *Lathes For Sale*

Description
Additional information

J & S Surface grinder Model 1415

Machine is in very good used working order,

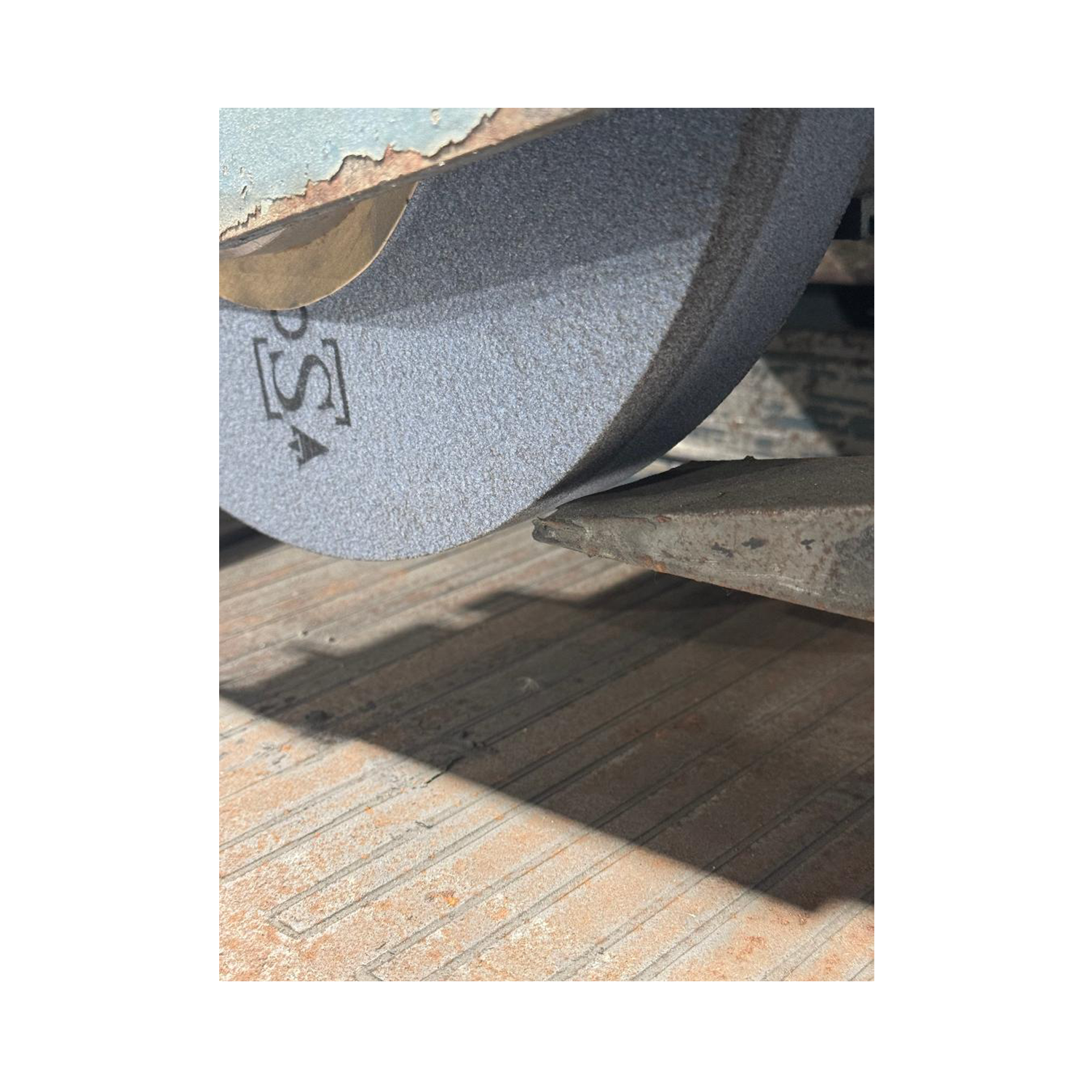

Comes with a slightly used 14″ x 2″ x 5″ grinding wheel

Come with a used and slightly rusty magnetic table from Eclipse 12″ x 24″ working well,

Capacity- 12″ x 24″ (300mm x 600mm)

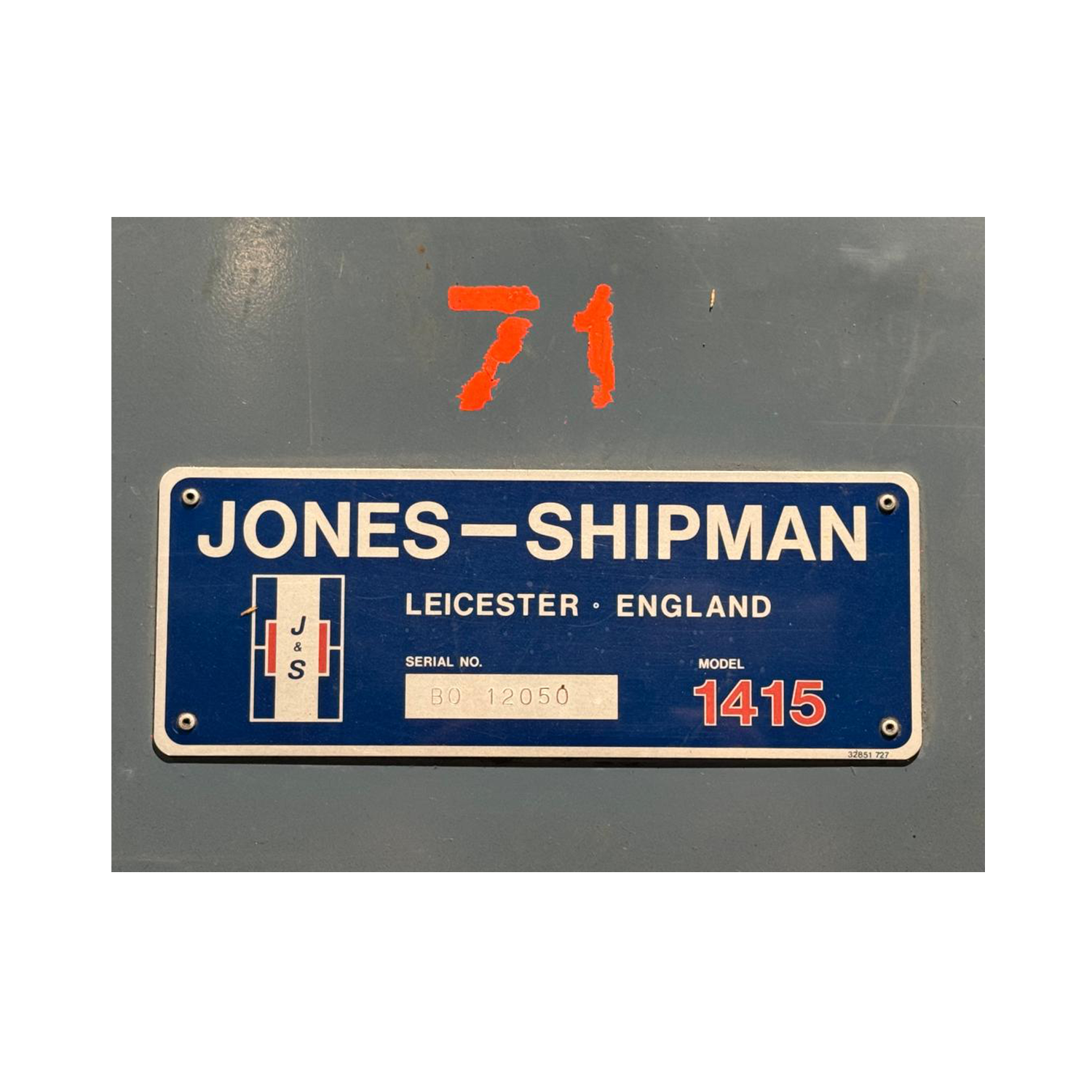

Serial No- BO 12050

Standard Equipment
Metric graduations
Power rise and fall to wheel head
12″ x 24″ Eclipse Magnetic Chuck

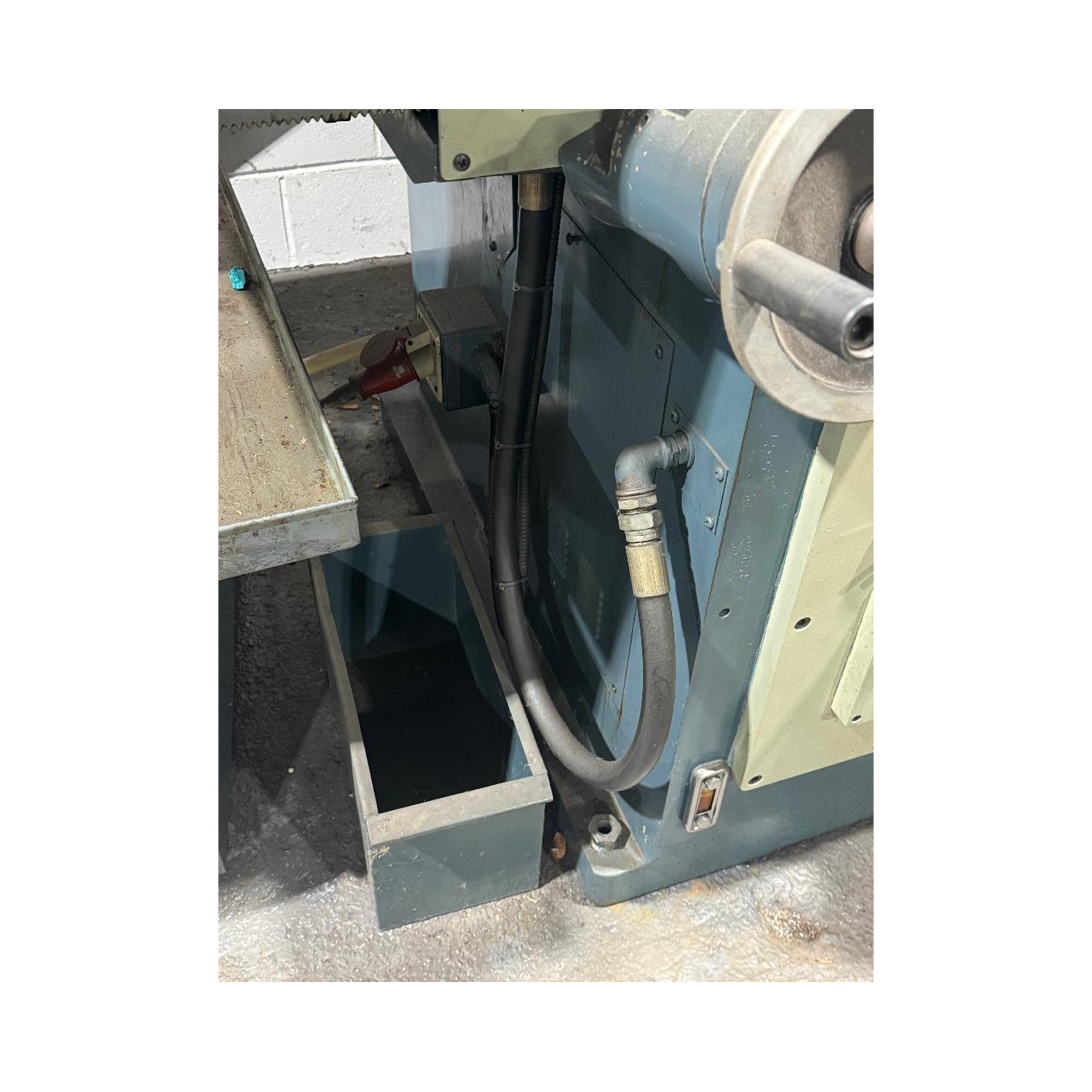

Coolant System with service fittings

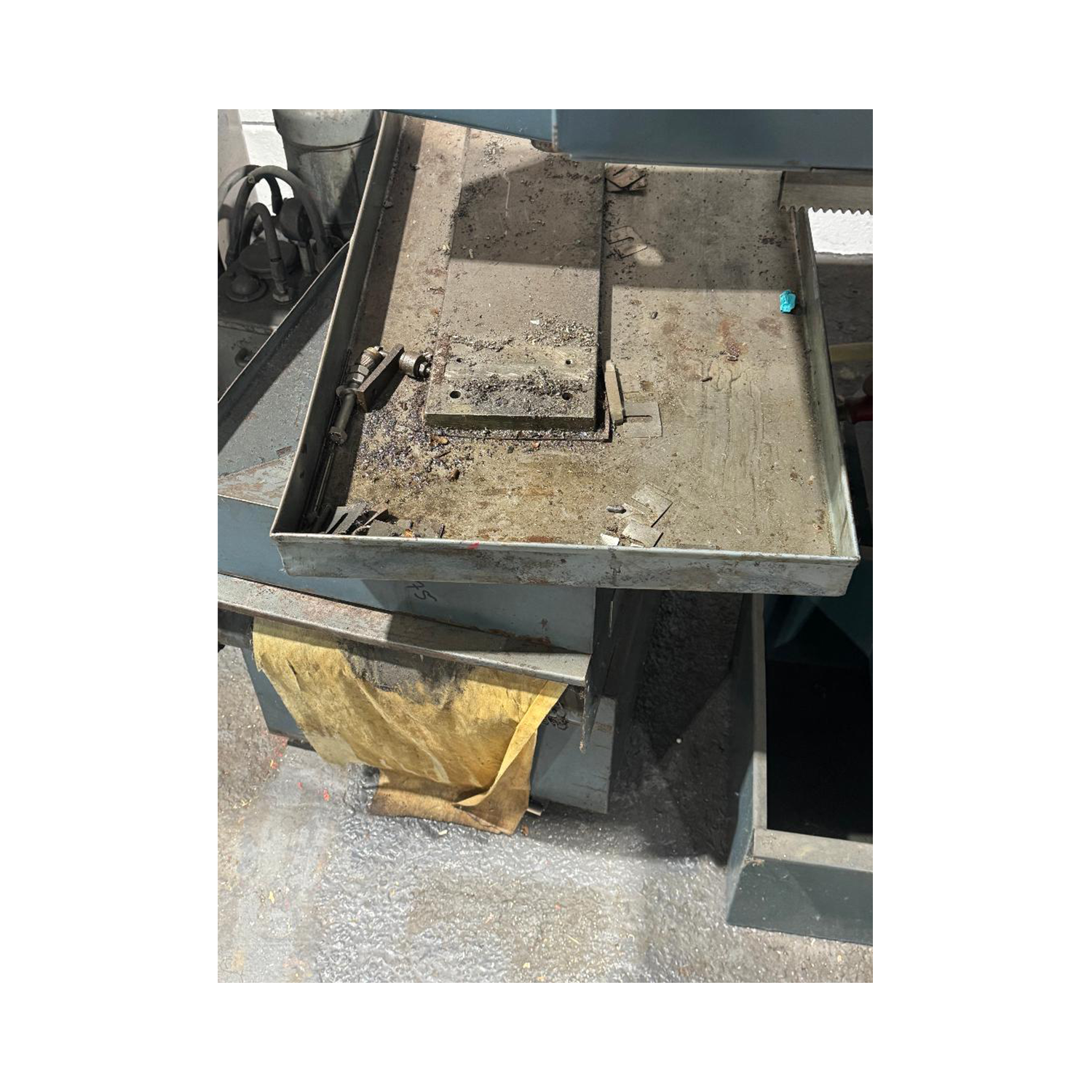

Front and Rear Splash Guards
Wheel Flange
Copy of Instruction Manual

Capacity-

Longitudinal grinding limit 680mm

longitudinal table traverse maximum 750mm

Traverse table movement grinding limit 300mm

Traverse table movement maximum 290mm

Vertical traverse of wheel head maximum 310mm

Clearance on table with new wheel 300mm

Work table-

Width of work table surface 280mm

Length of work table surface 680mm

Tee slots (3) 14mm

Cross feed-

Hand Graduated in 0.02mm

Hand fine adjustment graduated in 0.002mm

Table Traverse-

Hand (one revolution) 38mm

Hydraulic (metres per minute) 3 – 24m/min

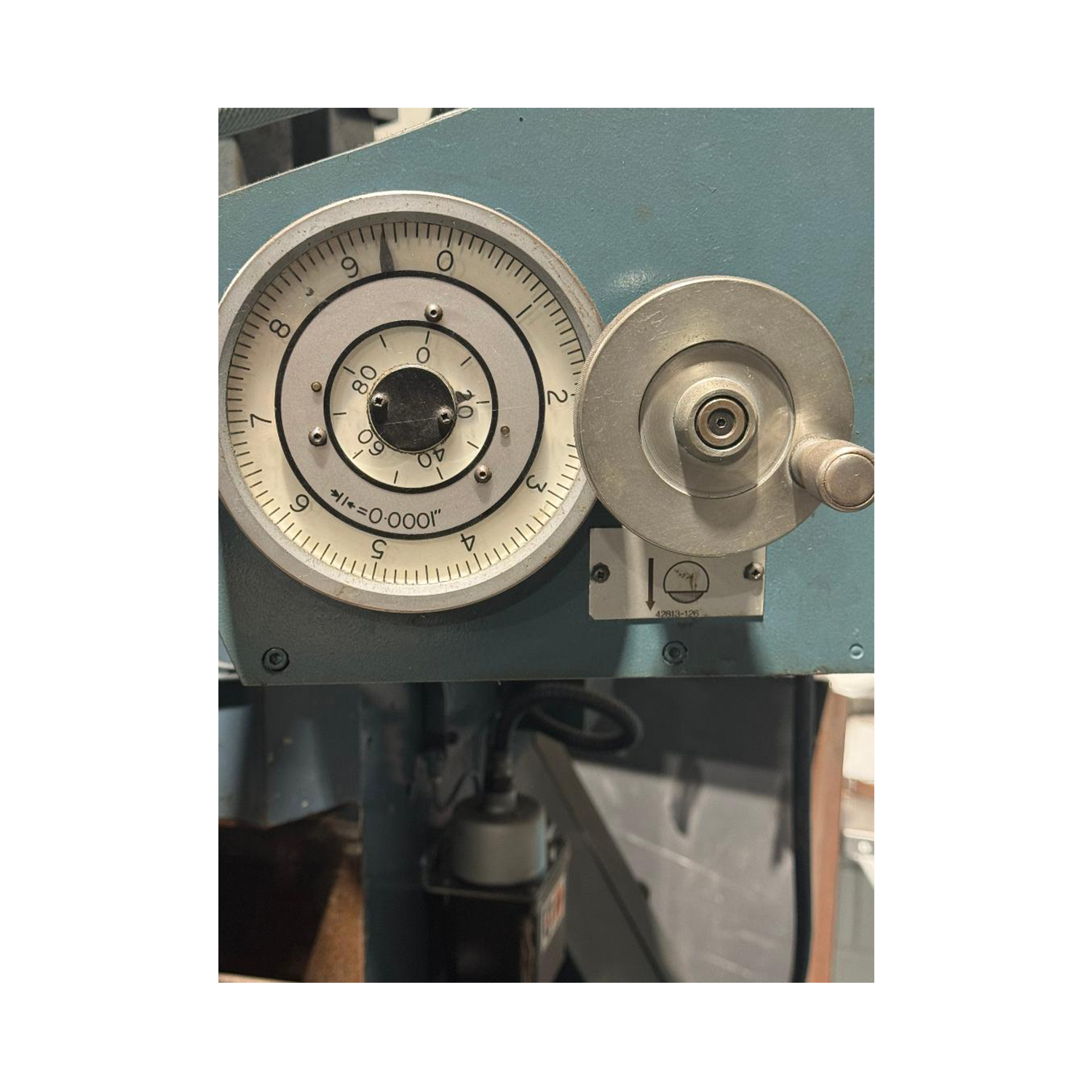

Wheel head Down feed-

Feed per revolution of dial 0.2mm

Dial graduated in 0.002mm

Secondary dial feed per revolution 2.0mm

Dial graduated in 0.2mm

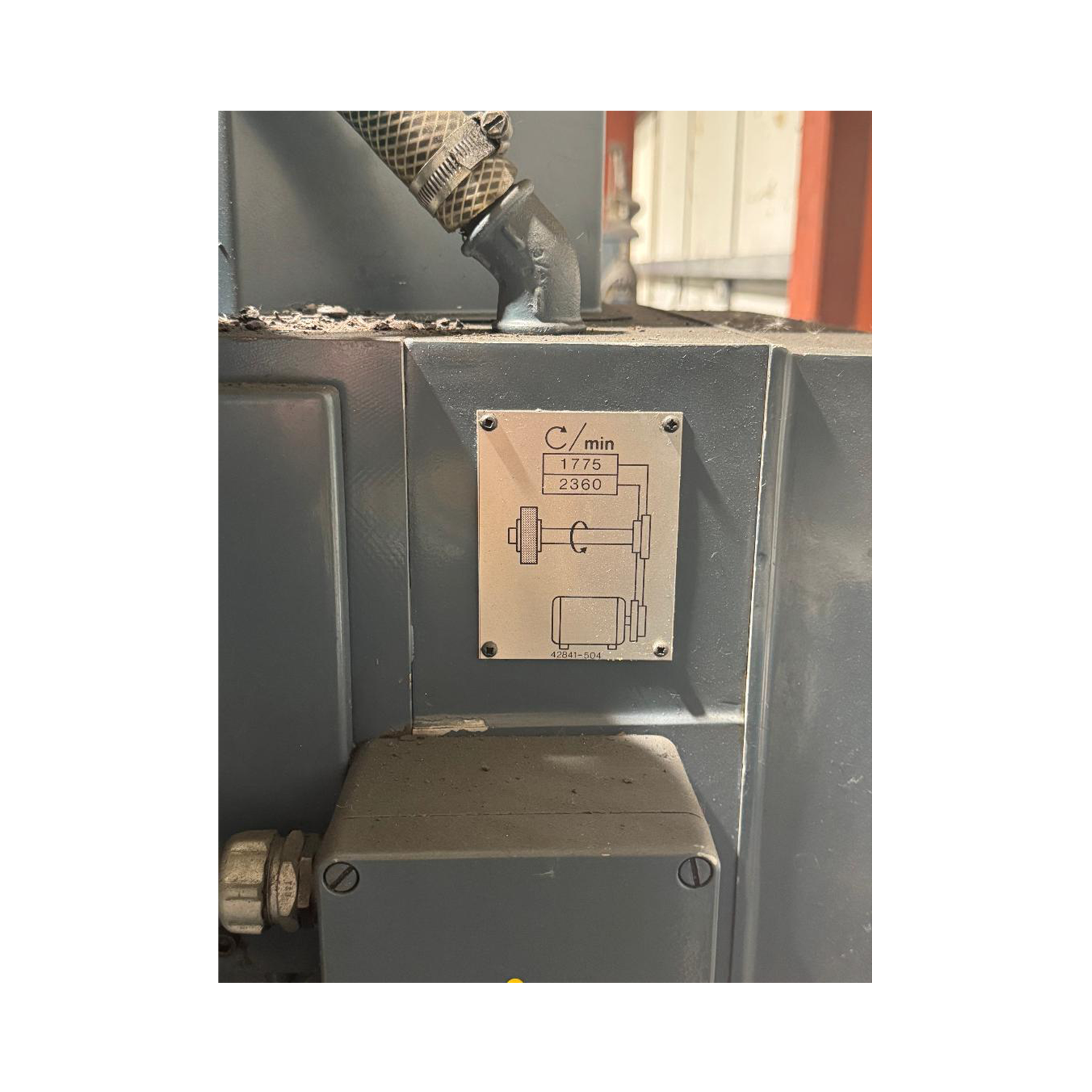

Wheel speeds-

Wheel speeds (giving 6,500 ft. per min) 2

New wheel 14″ diameter 1775RPM

Reduced to 10.5″ diameter 2360RPM

Weight	3000 kg
