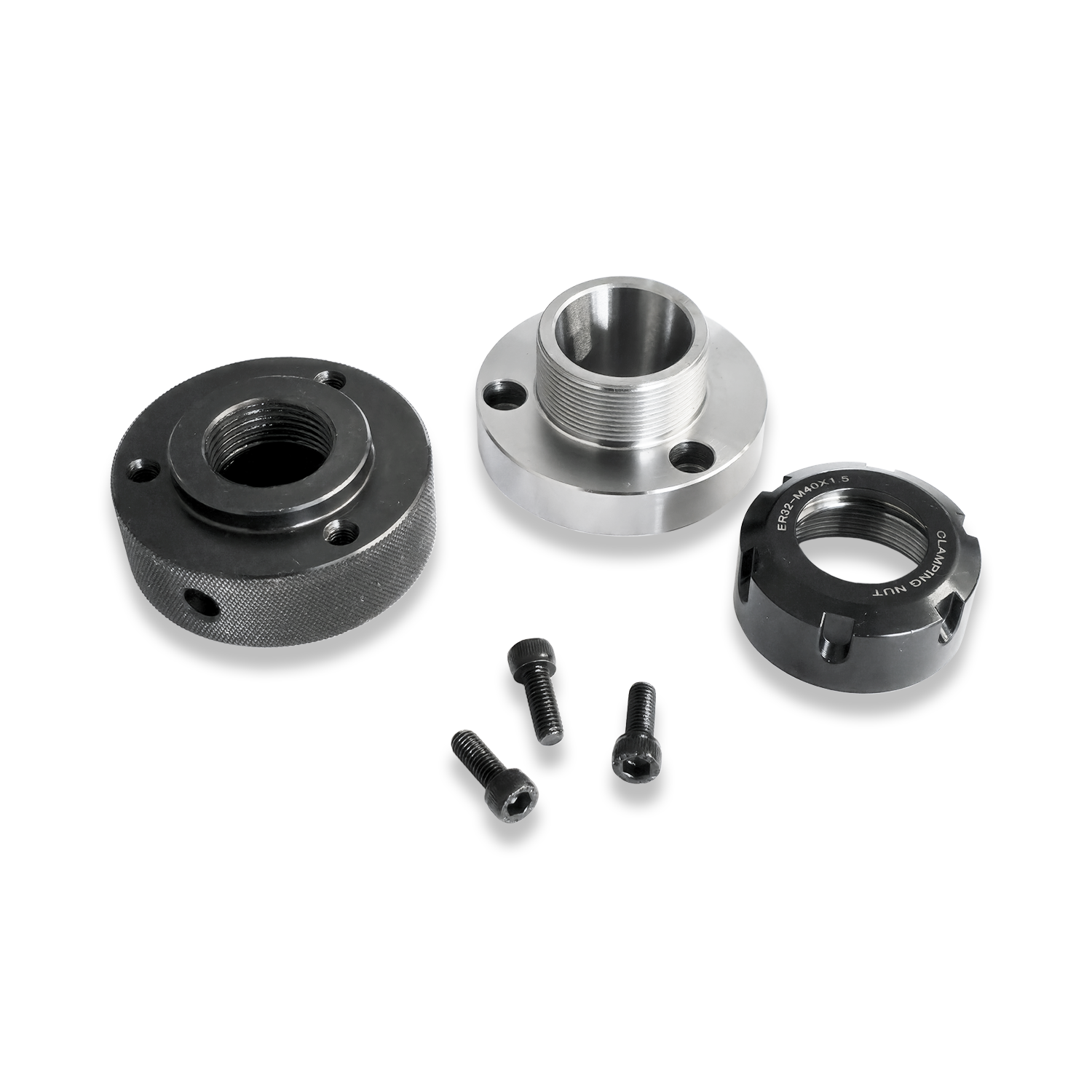

ER32 COLLET CHUCK MYFORD THREAD “2PC CHUCK”

ER32 COLLET CHUCK WITH BUILT IN MYFORD THREAD,
THIS IS A 2PC HEAD SYSTEM,
THIS SYSTEM IS DESIGNED TO CREATE THE BEST ACCURACY AVAILABLE ON YOUR MACHINE!
FITTING INSTRUCTIONS:
1)CLEAN ALL PARTS.
2) FIT THE BACKPLATE TO THE MACHINE
3)ROUGH TURN THE REGISTER
4) SKIM FACE AND BLEND WITH THE DIAMETER
5) FINISH THE REGISTER
6) OFFER UP THE ADAPTOR AND SKIM MORE IF NEEDED
7) CLEAN THE ADAPTOR AND SECURE WITHTHE 3 SCREWS BUT DO NOT TIGHTEN
8)USE A DTI ON THE TAPER TO CHECK THE ACCURACY
9) IF REQUIRED TAP DOWN THE HIGH POINT AND RE CHECK
10) TIGHTEN THE SCREWS
