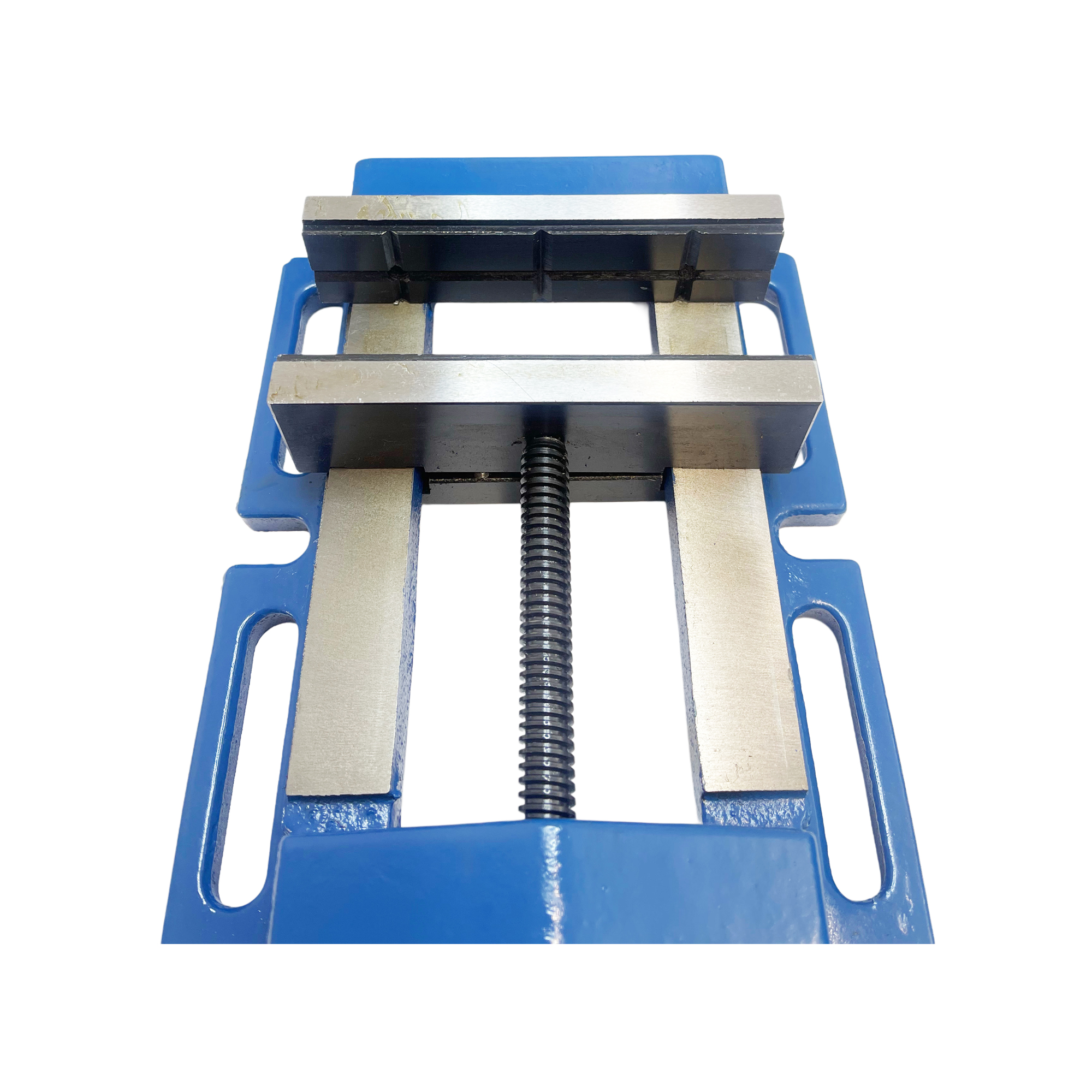

150MM DRILL PRESS VICE PROFESSIONAL BUILT IN TYPE DRILLING TAPPING HARLINGEN

BUILT IN TYPE DRILL PRESS VICE HAS CONSISTENT OVERALL LENGTH WHICH IS DESIGNED FOR A VARIETY OF USING FUNCTIONS LIKE DRILLING, TAPPING AND REAMING
SHOULDER SLOTS FOR QUICK EASY POSITIONING ON DRILL PRESS TABLE
JAW WIDTH 150MM
OPENING CAPACITY 130MM
VICE HEIGHT 75MM
BASE DIMENSIONS 200MM WIDE X 230MM LONG (NOT INCLUDING HANDLE)
DISTANCE BETWEEN CLAMPING CENTRES 160MM
SLOT SIZE 16MM
STATIC JAW HAS BOTH HORIZONTAL AND VERTICAL VEE GROOVES
WEIGHT 7.3KG
