100mm Rotary Table Backplate/Adaptor for chuck 70mm recess

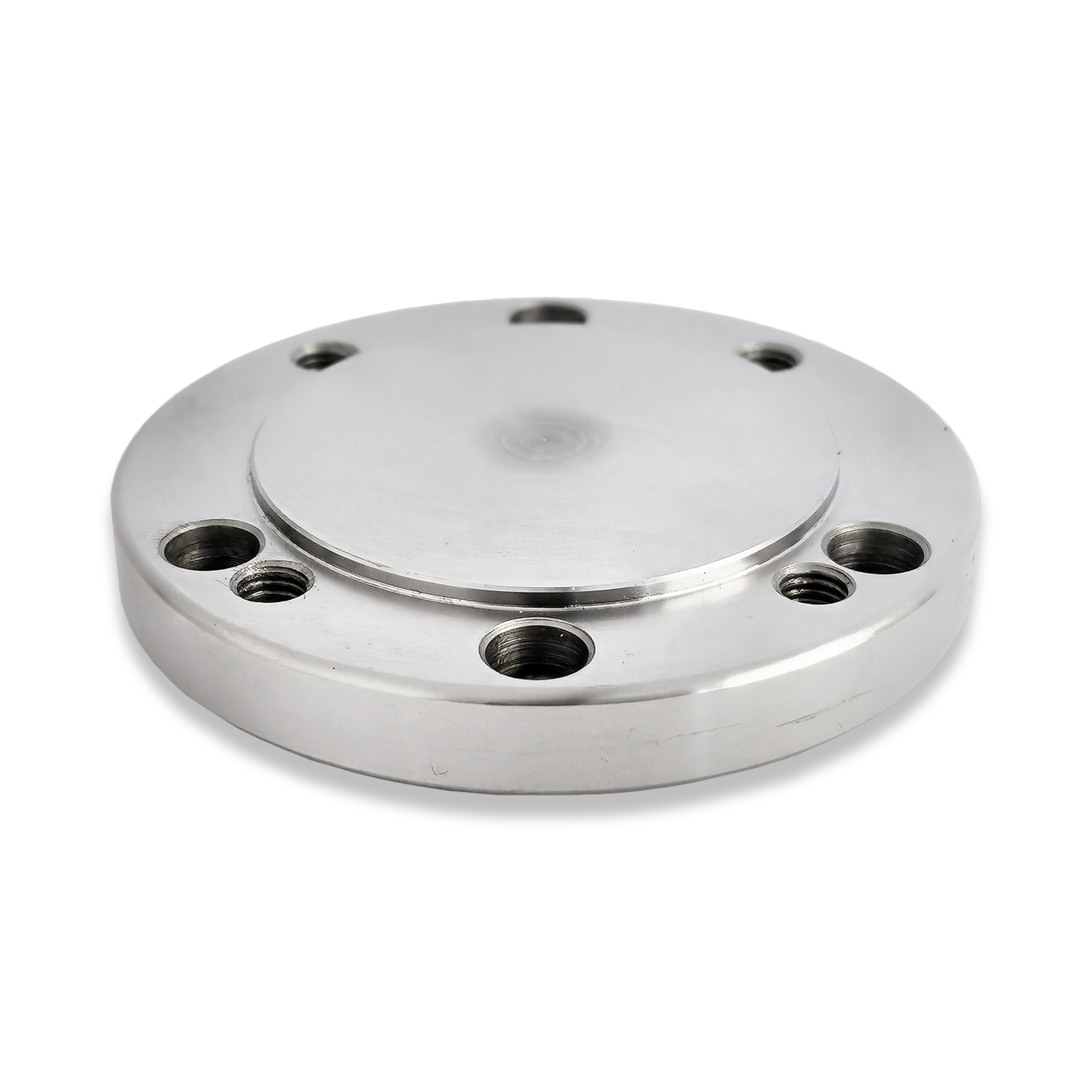

100mm Rotary Table Backplate.
Allows a 4 jaw chuck to be used on a 3 slot rotary table.

The backplate has a 70mm register to locate in your chuck and 4 threaded holes with a 84mm pcd (threaded 8mm) to secure your chuck to the plate.
The register can be reduced or removed by facing off in your lathe.

On the rear is the stumpy 2 morse taper fitting which would self centre the plate to your Rotary Table.
The 3 countersunk holes on the opposite side to the stumpy 2MT have an 84mm pcd so you can secure the plate to the Rotary Table with T nuts and bolts (included).

EAN NUMBER 5056685103661
